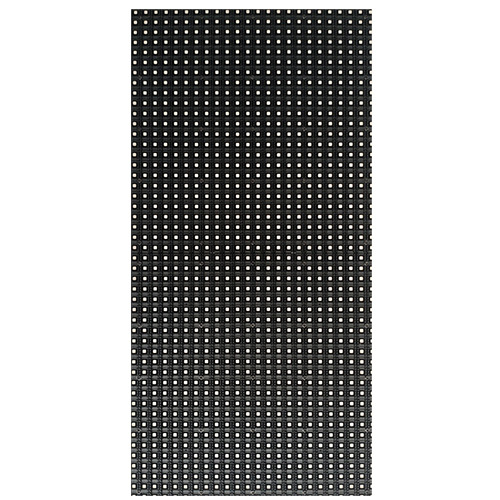

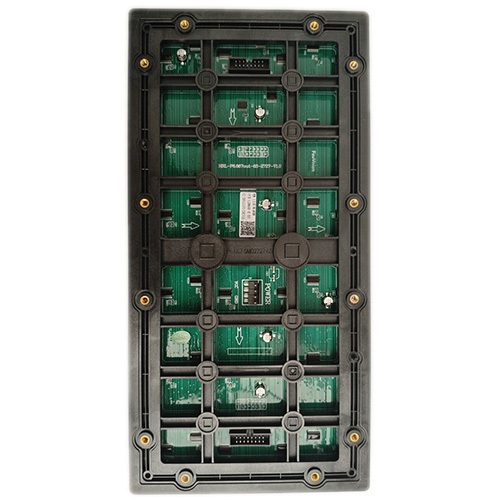

Dahua Feuvision P6.6 LED Display Module 320x160mm SMD LED Screen Panel

Send Inquiry

Request To Call Back

Dahua Feuvision P6.6 LED Display Module 320x160mm SMD LED Screen Panel

Get a Price/Quote

MOQ : 1 Piece Piece

Dahua Feuvision P6.6 LED Display Module 320x160mm SMD LED Screen Panel Specification

Beam
140/140 (H/V viewing angle)

Current Rating
Max 4.5A/module

Light Color
Full Color

Life Span
100,000 hours

Housing
Plastic with PCB

Power Supply
5V DC (Recommended Power Supply: 40A/5V)

Wireless Distance
Custom/Optional (based on controller)

Response Time
0.1ms

Shape
Rectangular Module

Humidity %
10%~90% RH, non-condensing

Operating Temperature
-20C to +60C

Control Type
Synchronous or Asynchronous

Efficiency (%)
85%

Product Type
LED Display Module

Material
SMD, PCB Board, Plastic/Aluminum Back

Base
SMD

Power Factor
0.95

Input Voltage
DC 5V

Working Temperature
-20C to +60C

Lamp Power
0.2W/LED

Application
Indoor/Outdoor LED Display, Advertising Board, Information Display

Size
320 x 160 mm

Dimension (L*W*H)
320mm x 160mm (panel size)

Weight
Approx. 0.4 kg/module

Color
RGB, Full Color

LED Type
SMD 3-in-1

Color Temperature
6500K

IP Rating
IP43/54 (Indoor standard) or IP65 (if outdoor suitable)

Module Type
Individually replaceable

Refresh Rate
1920 Hz

Brightness
1800 cd/m2

Pixel Density
22,724 pixels/m2

Panel Flatness
0.2mm

Drive Method
1/8 Scan

Gray Scale
14-16 bit

Service Access
Front or Rear Service (customizable)

Module Resolution
48 x 24 dots

Pixel Pitch
6.6mm

Maintenance Method
Front/Rear

Cabinet Support
Steel/Aluminum Cabinet

Dahua Feuvision P6.6 LED Display Module 320x160mm SMD LED Screen Panel About

Discover the Dahua Feuvision P6.6 LED Display Module-the combination of an uncommon technological leap and a triumphant display solution, offered at a truly bargain price. Its magnificent pixel pitch of 6.6mm delivers clarity, while a superb brightness of 1800 cd/m2 ensures your content stands out anywhere. Experience the latest in modular SMD LED technology with individually replaceable panels and flexible maintenance from both front and rear. For suppliers and traders in India, this robust and reliable unit delivers the lowest price without compromising performance or quality.

Competitive Advantages and Application Potential

Enjoy competitive advantages with the Dahua Feuvision P6.6 LED Display Module, featuring a rectangular full-color panel and a wide 140 viewing angle. Its versatility suits indoor and outdoor sites, making it ideal for advertising boards, information displays, and digital signage in malls or transport hubs. This module effortlessly handles dynamic application media, maintaining vibrant, sharp visual effects even in challenging environments.

Certifications, Packaging, and Sample Estimate Details

The Dahua Feuvision P6.6 LED Display Module comes with trusted certifications, ensuring longevity and reliability. Secure packaging safeguards each module during transit to your location. Take advantage of our flexible sample policy-request samples at the lowest price to estimate your outlay with confidence before confirming large orders. Every step ensures you maximize value with world-class quality.

FAQ's of Dahua Feuvision P6.6 LED Display Module 320x160mm SMD LED Screen Panel:

Q: How can the Dahua Feuvision P6.6 LED Display Module be installed and maintained?

A: The module offers front or rear service access and supports easy installation and maintenance, allowing flexible integration in steel or aluminum cabinets as per project requirements.

Q: What are the main benefits of choosing the Dahua Feuvision P6.6 LED Display Module?

A: Benefit from high brightness, vivid color reproduction, wide viewing angles, and uncommon flexibility in both application and maintenance, ensuring smooth and cost-effective operation.

Q: Where is this LED display module best utilized?

A: It is ideally suited for both indoor and outdoor environments, including advertising boards, information displays, retail, corporate lobbies, airport terminals, and more.

Q: What application media can this LED screen panel accommodate?

A: This module supports diverse media content, ranging from static advertisements to dynamic videos, ensuring magnificent presentation of digital content in real-time.

Q: How can I request a sample and estimate the initial outlay?

A: You can contact our sales team to request a sample at the lowest price, allowing you to accurately estimate your total outlay before committing to a bulk purchase.
