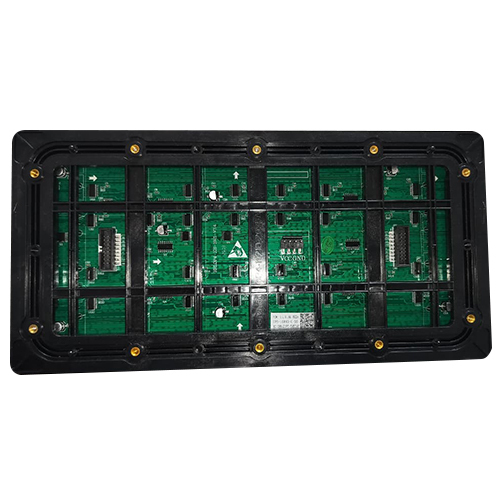

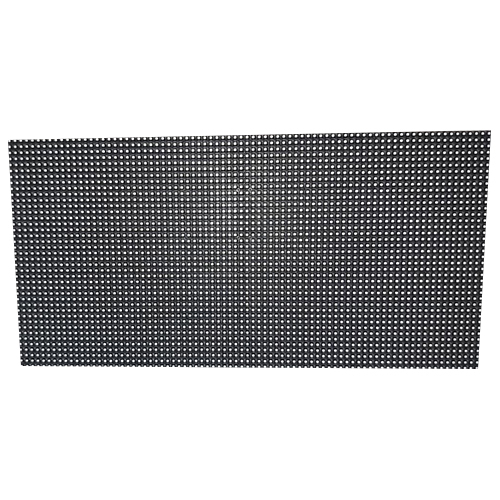

Dahua Feuvision P4 Outdoor LED Display Module 320x160mm 3840Hz SMD LED Screen Panel

Send Inquiry

Request To Call Back

Dahua Feuvision P4 Outdoor LED Display Module 320x160mm 3840Hz SMD LED Screen Panel

Get a Price/Quote

MOQ : As per supplier Piece

Dahua Feuvision P4 Outdoor LED Display Module 320x160mm 3840Hz SMD LED Screen Panel Specification

Current Rating
Approx. 4.5A/Module

Power Supply
DC 5V

Light Color
RGB Full Color

Efficiency (%)
High

Control Type
Synchronization/Asynchronous supported

Beam
120 Horizontal / 60 Vertical

Life Span
>100,000 Hours

Wireless Distance
Optional, depends on controller

Shape
Rectangle

Response Time
<0.1 ms

Operating Temperature
-20C to +60C

Humidity %
10%~90% RH

Housing
Plastic Mold

Product Type
Outdoor LED Display Module

Material
SMD, PCB, Plastic Housing

Base
Module Base

Power Factor
High

Input Voltage
DC 5V

Working Temperature
-20C to +60C

Lamp Power
SMD LED dependent

Application
Outdoor Advertising, Signage, Video Walls

Size
320x160mm

Dimension (L*W*H)
320x160mm

Weight
Approx. 0.37 kg

Color
Black/Green (PCB)

LED Type
SMD (Surface Mounted Device)

Color Temperature
6500K (Typical for Outdoor LED)

IP Rating
IP65

Connector Type
HUB75

Pixel Density
62,500 dots/m2

Average Power Consumption
14W/module

Driving Method
1/10 Scan

Input Power Frequency
50-60Hz

Mounting
Screw-in/Frame mount

Cabinet Compatibility
Standard iron/aluminum/cabinet compatible

Maximum Power Consumption
40W/module

Refresh Rate
3840Hz

Pixel Pitch
4mm

Brightness
>5500 nits

Viewing Distance
>4m

Waterproof Grade
IP65 front, IP54 back

Gray Scale
14-16 bit

Module Resolution
80x40 pixels

Dahua Feuvision P4 Outdoor LED Display Module 320x160mm 3840Hz SMD LED Screen Panel About

Spotlight your message with the splendiferous Dahua Feuvision P4 Outdoor LED Display Module, a formidable solution built for high-impact outdoor advertising and spectacular video walls. With a splendid refresh rate of 3840Hz, brilliant RGB full color, and exceptional brightness >5500 nits, your visuals are certain to shine. This customizable module features a high-density pixel pitch of 4mm and supports both synchronous/asynchronous control. For a limited time, upgrade your signage with a resilient, waterproof IP65 design-crafted for longevity and adaptability in diverse environments. Ideal for traders and suppliers across India.

Powerful Performance & Versatile Applications

The Dahua Feuvision P4 Outdoor LED Display Module excels in various settings, including outdoor advertising, dynamic signage, and vibrant video walls. Designed with SMD LED technology, it offers high brightness, exceptional gray scale, and superb pixel density, making each display visually striking. With a robust waterproof rating and compatibility with multiple cabinet types, this module is engineered for both temporary and permanent installations. Its low power consumption and broad viewing angles make it ideal for bustling commercial centers and public spaces.

Global Supply & Trade Flexibility

Dahua Feuvision P4 Outdoor LED Display Module caters to splendiferous export markets throughout Asia, Europe, the Middle East, and beyond. We offer drop-off and supply options at major FOB ports across India, ensuring seamless and timely delivery. Our efficient exchange processes accommodate various payment terms such as TT, LC, and online payment methods, making international transactions effortless. Dedicated to top-tier service, we support traders, distributors, and end-users in meeting their visual display needs effectively and reliably.

FAQ's of Dahua Feuvision P4 Outdoor LED Display Module 320x160mm 3840Hz SMD LED Screen Panel:

Q: How is the Dahua Feuvision P4 LED Display Module typically used?

A: This module is commonly utilized for outdoor advertising, digital signage, and video walls where high brightness and clear visuals are crucial. Its customizable configuration enables businesses to create unique displays for public spaces, stadiums, and commercial venues.

Q: What makes the Dahua Feuvision P4 module splendiferous for outdoor applications?

A: Featuring a formidable waterproof grade of IP65 on the front and high brightness exceeding 5500 nits, this module ensures reliable performance and eye-catching displays even in challenging weather conditions, making it splendid for outdoor installations.

Q: Where can the module be installed, and what are its mounting options?

A: The module is versatile for installation in a variety of outdoor environments, including advertising billboards and event stages. It can be mounted using screw-in or frame-mount options, with compatibility for standard iron or aluminum cabinets.

Q: What is the process for exchanging or ordering the module for international markets?

A: Our supply chain is streamlined for global clientele. After confirming your order and payment terms, you can arrange for drop-off at designated FOB ports in India. We support various payment and exchange methods for hassle-free international transactions.

Q: What are the primary benefits of this outdoor LED module?

A: The main benefits include high refresh rate for flicker-free visuals, superior color performance, extended lifespan over 100,000 hours, and adaptability for different outdoor applications. Its splendid efficiency and remarkable reliability make it a trusted choice for high-impact displays.
