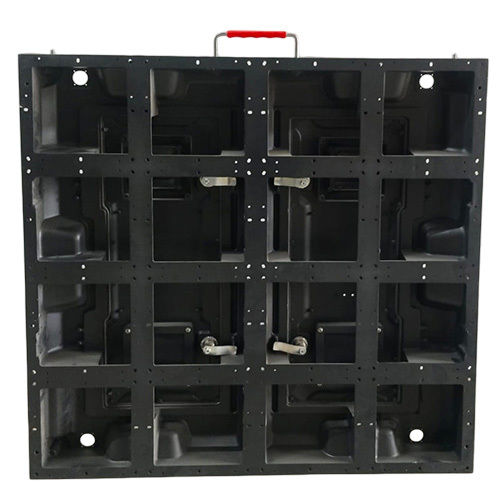

768x768mm Outdoor Die Cast Aluminium LED Display Cabinet For Advertising LED Screen

Send Inquiry

Request To Call Back

768x768mm Outdoor Die Cast Aluminium LED Display Cabinet For Advertising LED Screen

Get a Price/Quote

MOQ : 10 Pieces

768x768mm Outdoor Die Cast Aluminium LED Display Cabinet For Advertising LED Screen Specification

Assembly
Pre-assembled, Quick Installation

Foldable
No

Height
768 mm

Dimension (L*W*H)
768 x 768 mm

Room Type
Outdoor/Public Spaces

Design
Modular, Slim, Lightweight

Weight
Approx. 12-18 kg (varies by manufacturer)

Primary Material
Die Cast Aluminium

Width
768 mm

General Use
Outdoor Advertising

Color
Black

Regional Style
Modern

Feature
Waterproof, Dustproof, High Brightness, Anti-corrosion

Technology
LED Display Technology

Furniture Type
LED Display Cabinet

Metals Type
Die Cast Aluminium

Inflatable
No

Appearance
Industrial, Contemporary

LED Type
SMD (Surface Mounted Device)

Refresh Rate
1920Hz to 3840Hz

Ingress Protection Rating
IP65 / IP66

Control System
Novastar/Linsn/Colorlight Compatible

Power Consumption
Max. 600W/Cabinet; Avg. 200W/Cabinet

Pixel Pitch
Customizable (usually P2.5, P3.91, P4.81, etc.)

Lifespan
100,000 Hours

Maintenance
Front/Rear Maintenance Available

Viewing Angle
Horizontal 140, Vertical 140

Connector Type
Seamless Lock System, Power & Data Connectors

Cabinet Material
Die Cast Aluminium

Cabinet Resolution
Dependent on pixel pitch (e.g. 256x256 pixels for P3)

Operating Temperature
-20C to +50C

Application
Outdoor Fixed/Advertising, Stage Rental, Events

Brightness
5000 nits

768x768mm Outdoor Die Cast Aluminium LED Display Cabinet For Advertising LED Screen About

Discover astonishing value and reserve your advantage with the 768x768mm Outdoor Die Cast Aluminium LED Display Cabinet, engineered for unassailable performance in public advertising. Offering valuable pixel pitch customization (P2.5, P3.91, P4.81, etc.), this cabinet delivers impressive 5000-nit brightness, wide 140 viewing angles, and robust IP65/IP66 protection. Its slim, modular design with seamless locking ensures quick assembly and savings on transportation. The die-cast aluminium body resists corrosion and harsh environments, while 100,000-hour lifespan and efficient power consumption make this an invaluable investment for outdoor advertising solutions in India and beyond.

Unmatched Advantages & Versatile Applications

Benefit from an unassailable combination of features: high brightness LED for vivid displays even in direct sunlight, waterproof and dustproof IP65/IP66 ratings, and robust anti-corrosion die-cast aluminium construction. The modular, slim cabinet design and seamless lock system make installation remarkably swift for outdoor advertising, events, and stage rental. With both front and rear maintenance options, users enjoy practical flexibility and minimal downtime, optimizing valuable time and resources on-site.

FOB Port & Market Reach - Safe and Swift Delivery

Dispatching from major Indian FOB ports, this LED cabinet is packaged with precision for secure, damage-free transportation. Ideal for main export markets across Asia and the Middle East, and widely supplied to key domestic markets throughout India, every unit is engineered to ensure smooth assembly and reliable operation upon arrival. Professional packaging techniques safeguard the product during all transit stages, guaranteeing quick deployment for your advertising or event needs.

FAQ's of 768x768mm Outdoor Die Cast Aluminium LED Display Cabinet For Advertising LED Screen:

Q: How does the customizable pixel pitch benefit outdoor advertising installations?

A: Customizable pixel pitch (such as P2.5, P3.91, P4.81) allows users to choose the ideal resolution for their specific viewing distance and size requirements, resulting in superior display clarity and more effective outdoor advertising.

Q: What features make this LED cabinet suitable for all-weather outdoor environments?

A: With an IP65/IP66 ingress protection rating, dustproof and waterproof qualities, plus corrosion-resistant die-cast aluminium, this cabinet delivers unassailable performance even in wet, dusty, or harsh outdoor conditions.

Q: When should front or rear maintenance be used for the LED cabinet?

A: Front maintenance is ideal for installations with limited rear access, such as wall-mounted displays, while rear maintenance is preferred where space allows, facilitating easier servicing and module replacement.

Q: Where can the 768x768mm LED Cabinet be installed?

A: It is designed for versatile use in outdoor public spaces including billboards, building facades, stadiums, stage rentals, and event advertising where high visibility and durability are paramount.

Q: What is the installation process for the seamless lock system?

A: Installation is straightforward; the modular cabinet design with quick-assembly seamless lock connectors ensures fast, tool-less setup, saving both time and labor during deployment.

Q: How does the high refresh rate enhance display performance?

A: With a refresh rate between 1920Hz and 3840Hz, the LED cabinet produces smooth, flicker-free visuals, crucial for capturing attention and ensuring optimal image quality during outdoor advertising or live events.
