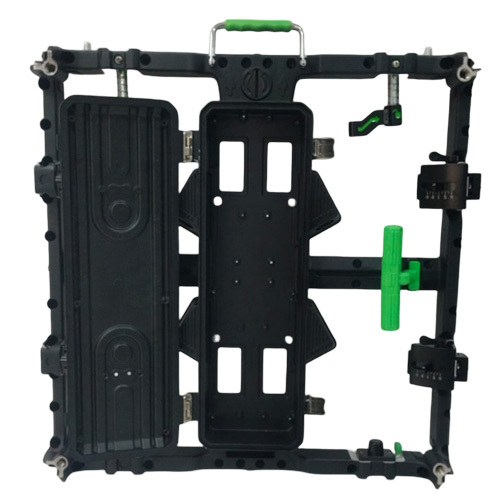

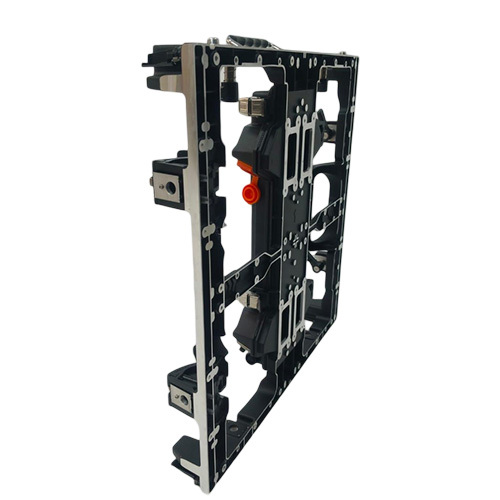

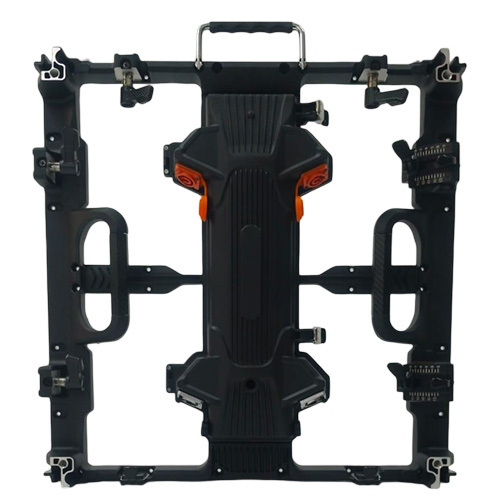

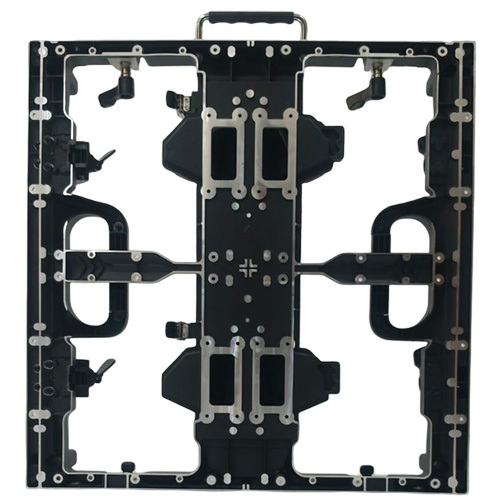

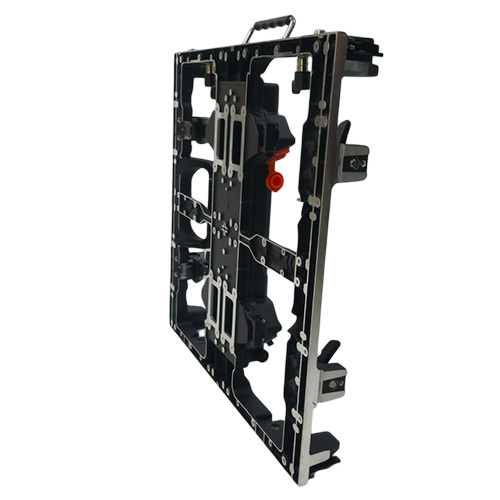

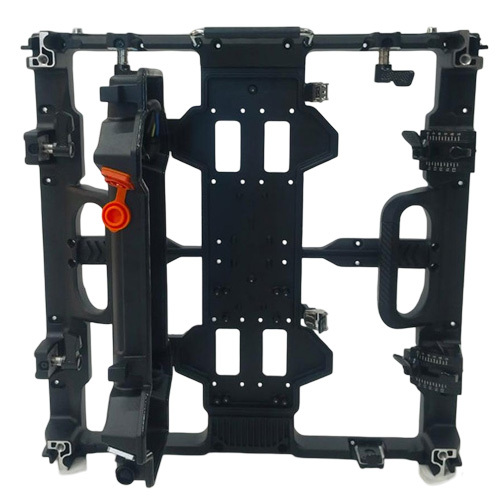

500x500mm Outdoor Die Cast Aluminium LED Display Cabinet Curved For Advertising LED Screen

Send Inquiry

Request To Call Back

500x500mm Outdoor Die Cast Aluminium LED Display Cabinet Curved For Advertising LED Screen

Get a Price/Quote

MOQ : 10 Pieces

500x500mm Outdoor Die Cast Aluminium LED Display Cabinet Curved For Advertising LED Screen Specification

Design
Curved Cabinet

Foldable
No

Primary Material
Aluminium

General Use
Advertising LED Screen

Dimension (L*W*H)
500x500mm

Assembly
Modular, Easy Installation

Regional Style
Modern

Technology
LED Display

Feature
Lightweight, High Strength, Weather Resistant

Color
Black

Width
500mm

Weight
Approx. 7-8 kg per cabinet

Room Type
Outdoor

Height
500mm

Furniture Type
LED Display Cabinet

Metals Type
Die Cast Aluminium

Inflatable
No

Appearance
Industrial/Commercial

Display Mode
Full Color LED Display

Installation Method
Hanging/Stacking/Wall Mounted

Framework
Die-cast aluminum frame for enhanced stability

Pixel Pitch Compatibility
Wide range (P2.6/P2.9/P3.91/P4.81 etc.)

Brightness
4500 nits (Outdoor)

Refresh Rate
>1920Hz (Depending on LED module and controller)

Service Access
Front Access / Rear Access

Module Maintenance
Front and Rear Maintenance Supported

Temperature Range
-20C to +50C

Cabinet Structure
Precise CNC Machined, Fast Locking System

Viewing Angle
Horizontal 140, Vertical 140

Handle Type
Integrated Carrying Handle

Power Consumption
Maximum 700W/m2, Average 300W/m2

Curvature Type
Convex and Concave Curvature Supported

Panel Resolution
Customizable according to LED module

IP Rating
IP65 Waterproof (Outdoor Standard)

Connector Type
Standard Power & Signal connectors

Application
Advertising, Stage Rental, Media Facade

500x500mm Outdoor Die Cast Aluminium LED Display Cabinet Curved For Advertising LED Screen About

Experience a matchless Deal with our 500x500mm Outdoor Die Cast Aluminium LED Display Cabinet-engineered for elite performance in outdoor advertising. Loved for its favorable reviews, this magnificent cabinet features customizable panel resolution, curved design, and a robust IP65 waterproof rating. The sturdy die-cast aluminum frame, fast locking system, and seamless front/rear access make assembly and maintenance effortless. Supporting a wide pixel pitch range, vibrant 4500 nits brightness, and flexible convex/concave installation, this modular LED solution is ideal for stage setups, media facades, and more. A modern, lightweight, and weather-resistant masterpiece.

Diverse Applications Across Industries

The 500x500mm Outdoor Die Cast Aluminium LED Display Cabinet is highly adaptable, making it ideal for multiple applications. Used for large-scale advertising, impressive stage rentals, eye-catching media facades, and versatile event backdrops, this elite-unit is engineered to perform brilliantly in both commercial and industrial settings. Application areas include outdoor billboards, stadiums, shopping malls, festivals, conventions, and city public spaces where dynamic visual impact is crucial.

Dedicated Export Services and Flexible Policies

Our matchless LED Display Cabinet is an in-demand choice in international export markets, with a strong presence in Asia, Europe, and the Middle East. We offer favorable Rate quotations after evaluating your requirements. Payments can be processed through TT or LC based on your preference. Upon receiving your Purchase Order, shipment arrangements are efficiently managed. For product evaluation, our Sample Policy ensures sample availability on request with reasonable charges applicable to your first order.

FAQ's of 500x500mm Outdoor Die Cast Aluminium LED Display Cabinet Curved For Advertising LED Screen:

Q: How is the installation process managed for the curved LED display cabinet?

A: The installation process is streamlined with integrated carrying handles and a fast-locking system, allowing for hanging, stacking, or wall mounting. The cabinet design supports both convex and concave curvature, ensuring flexible setups.

Q: What application areas benefit most from this LED display cabinet?

A: This cabinet excels in advertising, stage rentals, media facades, sports stadiums, shopping complexes, and outdoor events demanding high-impact, vivid displays under varying weather conditions.

Q: When can I expect shipment after placing a purchase order?

A: Shipment is typically arranged immediately upon receipt of your purchase order and payment confirmation, with timelines varying by region and order size.

Q: Where can the front and rear maintenance be performed?

A: Both front and rear maintenance can be done on-site, providing convenient access for quick module replacements or adjustments without needing to remove the cabinet from its installation location.

Q: What are the key benefits of the die-cast aluminium structure?

A: The die-cast aluminium structure offers high strength, lightweight durability, and excellent weather resistance, ensuring long-term stable performance in demanding outdoor environments.

Q: How customizable is the cabinet's panel resolution?

A: Panel resolution is fully customizable according to your selected LED module, allowing for a wide range of pixel pitches (such as P2.6, P2.9, P3.91, P4.81, etc.) to meet diverse visual and application needs.
